MOT-E 20
¥28,800.00
MOT E 考虑到儿童的不同体型，是我们的电动自行车，能让儿童轻松跟随父母的脚步。有了电机，一切都变得有趣起来。
有了 Mot E，你可以在最崎岖的山路上肆意驰骋，也可以进行高难度的骑行或参加耐力赛。没有任何一款儿童自行车能像 Mot E 这样用途广泛。Mot E 在下坡时动力惊人，由于重量轻，上坡时也很强劲。其运动学设计专门针对低体重人群。它非常轻盈，但驾驶中性。几何结构绝对是最先进的，重量超轻，设备质量高、功能强、坚固耐用。
这款 20 英寸和 24 英寸电动全山地自行车配有 Manitou Junior 气压前叉、Rockshox Monarch后避震、BAFANG G532 驱动系统和 Clarks M4 油压碟刹，专为 7 岁及以上儿童设计。
FRAME HIGH PIVOT
This bike is designed and built for a single purpose: Get you enduro faster.
So, what happens when you ride a bike with the industry’s most refined
high pivot design equipped with 119mm of rear wheel travel. You get a Enduro bike with zero compromises.You develop a new penchant for committing to corner speeds and line.
E-MOTOR
BAFANG M820 With only 2.3kg, it convinces in all points with 250W rated power and strong 75Nm (max torque) for a maximum extended cadence support of 120 rpm. Thanks to its perfectly tuned torque sensor, it can control the exact power according to the pedaling force.
Designed for eRoad/eGravel and eMTB bikes.
With a max torque of 75Nm and 250W rated power output.
SUSPENSION FORK
Manitou JUNIT Comp, a youth-sized 20” and 24 suspension fork. Finallyyoung riders have the option for either a 20” or 24″ wheel to enjoythe lightweight, high-quality chassis. JUNIT Comp features a 1.5″ taperecallov steerer tube and a foraed hollow crown. Thirty-two millimeter. 6000series black anodized stanchions are completed with Manitou’s signatureReverse Arch. Lightweight riders benefit from the easily adiustable Air springsystem, adjustable rebound, and our proven ABS+ damper.
M4 HYDRAULIC BRAKE
The M4 is a new 4 piston brake system from Clarks.
Our most powerfulproduction brake produced to date the M4 is lightweight with a slimline designand 4x16mm pistons per calliper, each delivering smooth, powerful, modulatedbraking force at the rotors, Perfect for all riding conditions encountered by theadventurous downhill rider and e-bikes, the M4 is the ideal brake system formore challenging environments where ‘feathering’ is required.
·4 Piston hydraulic brake system for MTB and downhill riders
·Lightweight design
·High quality finish
·4x Self adjusting pistons 16mm pistons
·12mm Lever pistons
·2 Finger lever
·Lever reach adjustment to suit all hand sizes
·International standard and Post mount fit
·Mineral oil fluid to protect the environment
·Stainless steel rotors
·Spare olives to allow for hose reduction
·Weight- 240g
·Complies with and exceeds EN 15194 and ISO 4210 standards
RIDE EXPERIENCE
Sram GX is your partner for all rides, all the time, all day. Long days, quick rides and everything in-between, GX Eagle is the ecosystem at its best. Sram GX is there to maximize the potential of your ride experience.
sram gx for CSAWP mot-e 20`
TRIGGER SHIFTER
The Ecosystem’s control center and the hardline to your bicycle’s dirvetrain, the Sram GX shifter’s positive feel gives the right rider input to make shifts crisp time after time.
sram gx for CSAWP mot-e 20`
RIDE EXPERIENCE
SHIMANO CUES is the revolutionary new brand developed to confidently enhance the riding experience.
CUES keeps you moving while you… Dash confidently through city streets.
Escape routine and explore mountain trails.
Take the long way through the countryside to refresh and recenter.
Enjoy the empowering experience of e-biking. The unifying theme of any biking experience with CUES is smooth, shockless shifting performance and welcoming ease of use.
SHIMANO CUES for CSAWP mot-e 24`
TRIGGER SHIFTER
The Shimano CUES U6000 Refined lever shape and light operation for easy shifting,This lever’s new shape and light operation provide riders with a comfortable, easy-to-use interface.
SHIMANO CUES for CSAWP mot-e 24
MOT E 考虑到儿童的不同体型，是我们的电动自行车，能让儿童轻松跟随父母的脚步。有了电机，一切都变得有趣起来。
有了 Mot E，你可以在最崎岖的山路上肆意驰骋，也可以进行高难度的骑行或参加耐力赛。没有任何一款儿童自行车能像 Mot E 这样用途广泛。Mot E 在下坡时动力惊人，由于重量轻，上坡时也很强劲。其运动学设计专门针对低体重人群。它非常轻盈，但驾驶中性。几何结构绝对是最先进的，重量超轻，设备质量高、功能强、坚固耐用。
这款 20 英寸和 24 英寸电动全山地自行车配有 Manitou Junior 气压前叉、Rockshox Monarch后避震、BAFANG G532 驱动系统和 Clarks M4 油压碟刹，专为 7 岁及以上儿童设计。

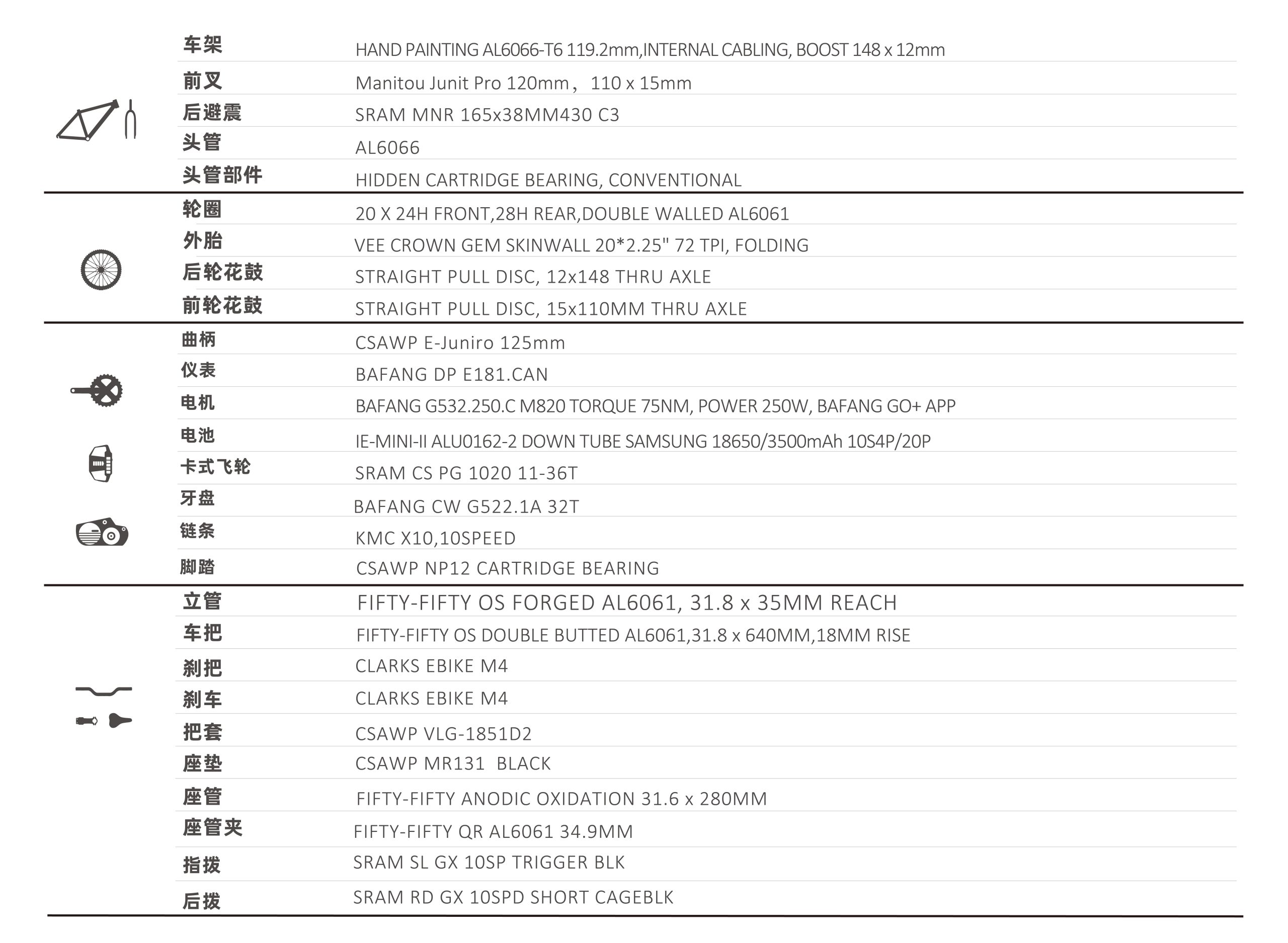

— 配置 —
Frame HAND PAINTING AL6066-T6 119.2mm,INTERNAL CABLING,BOOST148 x12mm |
Fork Manitou Junit Pro 120mm，110 x15mm |
Head Parts HIDDEN CARTRIDGE BEARING，CONVENTIONAL |
Rim FIFTY-FIFTY 20 x 28H，30mm，DOUBLE WALLED AL6061 |
Tire VEE CROWN GEM SKINWALL 20 X 2.25" |
Rear Hub STRAIGHT PULL DISC，BOOST 148 X 12mm THRU AXLE |
Front Hub STRAIGHT PULL DISC，BOOST 110 X 15mm THRU AXLE |
Crank set CSAWP E-Juniro125mm |
Display BAFANG DP E181.CAN |
Motor BAFANG G532.250.C M820 TORQUE 75NM,POWER 250W，BAFANG GO+ APP |
Battery IE-MINI-1l ALU0162-2 DOWN TUBE SAMSUNG 18650/3500mAh，10S4P/20P |
Chainring BAFANG CW G522.1A 32T |
Cassette SRAM PG102011-36T |
Chain KMC E-X10 10SP |
Pedal CSAWPJUNIRO NYLON COMPOSITE BLK |
Stem EIETY-FIFTY OS FORGED AL6061，31.8 X 35MM REACH |
Handlebar FIFTY-FIFTY OS DOUBLE BUTTED AL6061,31.8 X 640MM，18MM RISE |
Brake lever CLARKS EBIKE M4 |
Brake CLARKS EBIKE M4 |
Grip CSAWP VLG-1851D2,115MM |
Saddle CSAWP MR131 |
Seat Post FIFTY-FIFTY ANODIC OXIDATION 31.6 X 280MM |
Seat Clamp FIFTY-FIFTY QR AL606134.9MM |
Derailleur lever SRAM GX 10SP |
Derailleur SRAM GX 10SP |
Weight 16.7kg / 36.82lb |
规格声明：产品年份批次不同，配置会有可能进行更变，不做另行通知，本网站尽一切努力确保配置的准确性，具体配置以收到的实物为准。此配置表最终解释权归CSAWP所有。

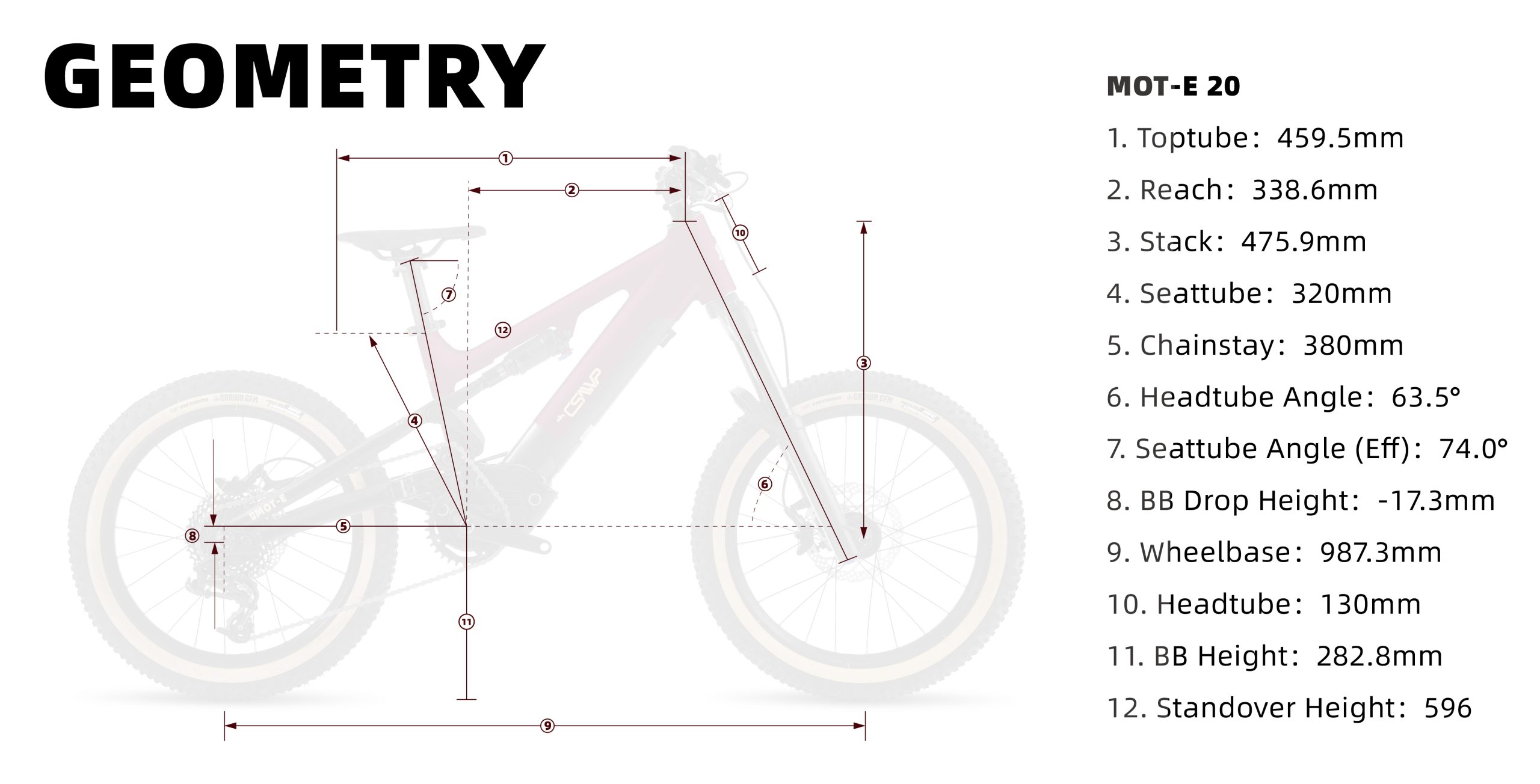

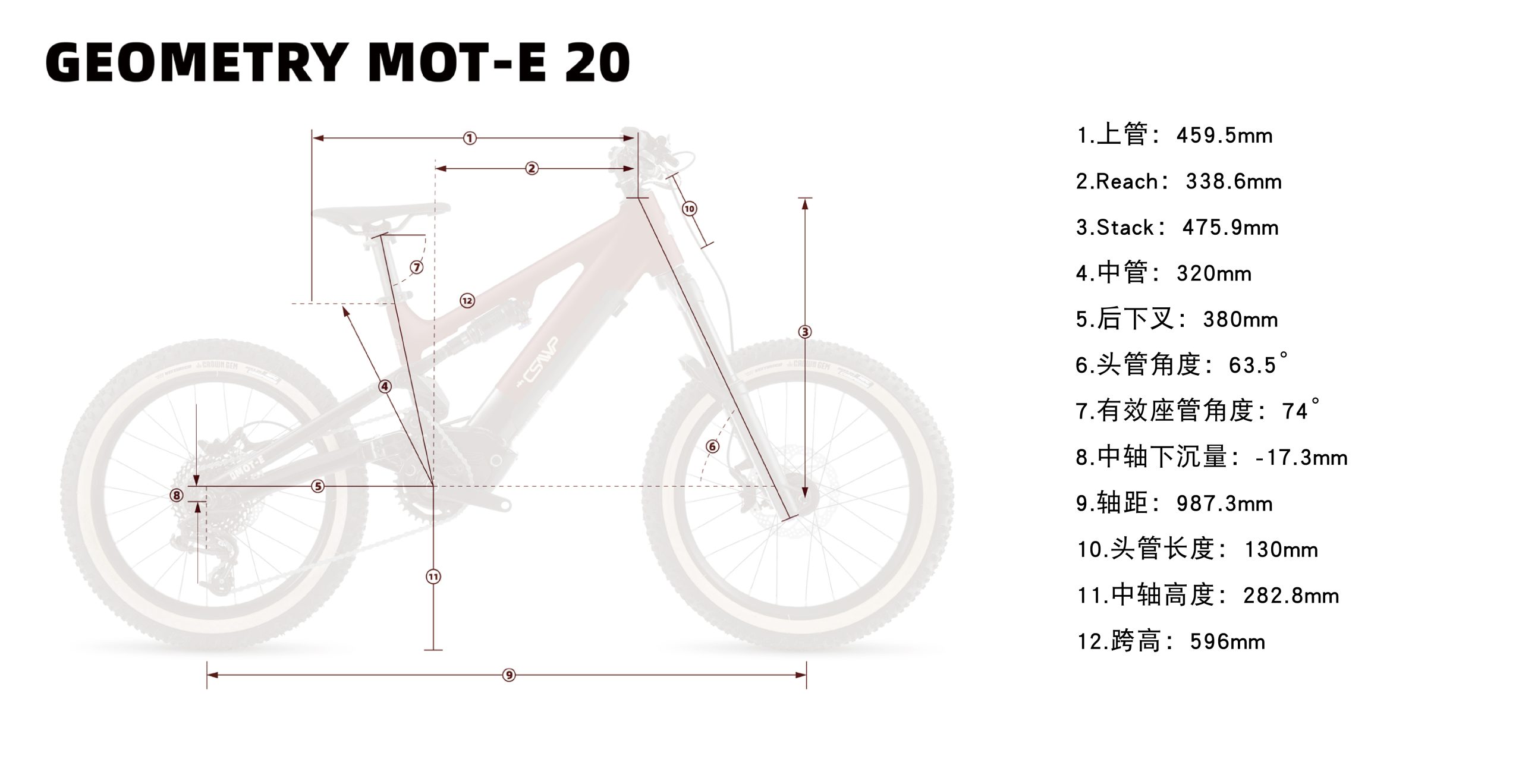

— 几何 —

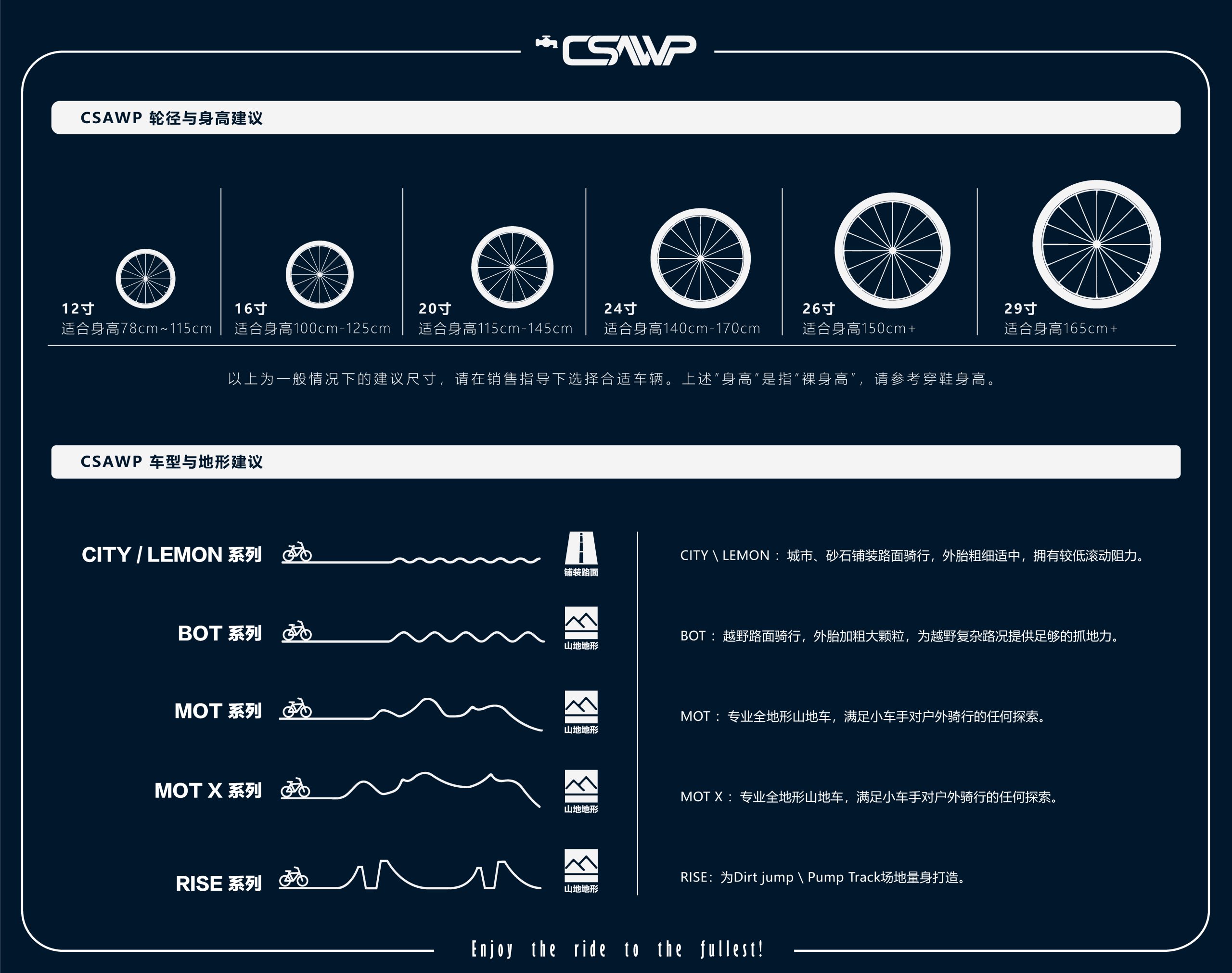

— 尺寸 —
